RSD-30/60 Series~DC-DC Enclosed Type Converter for Railway Application

For completing product line of enclosed type DC/DC converter, MEAN WELL is unveiling RSD-30/60 series after announcing RSD-100/150/200/300, to satisfy the various needs of vehicle applications. Featuring with 4:1 wide input range and 4000VDC input/output isolation, RSD-30/60 series are well-characterized by 5G anti-vibration ability, wide range working temperature of -40~+70℃, 1U low profile (25mm). In addition, they are equipped with built-in constant current limiting circuit and protections for overload, short circuit, output over voltage and input reverse polarity.

With advanced high efficiency circuit design, RSD-30/60 series possess efficiency up to 93%. On the other hand, all series are semi-encapsulated for protection of PCB, providing the basic ability of anti-moisture, anti-dust, anti-vibration and heat dissipation. Therefore, they can be cooled without any forced-air cooling equipment but still able to work at ambient temperature range between -40℃ to +70℃, which well fit in with the applications of harsh environment such as high temperature, dust, and moisture. The design of RSD-30/60 complies with ITE standards (IEC60950-1 and EN55032) and railway certificates (EN50155, EN45545-2 and IEC60571), so that they are suitable for all kinds of vehicle applications including railway, subway, metro rapid transit system, bus, leisure trailer, vessel……etc. One more thing, for the applications of two-stage isolation, voltage stability and harsh industrial installation such as security system, DC UPS system, and telecom equipments, RSD-30/60 can perfectly meet the requirements as well.

• EN50155/EN45545-2/IEC60571 railway related regulations compliance
• 1U low profile (25mm)
• 4:1 wide input range: 9~36VDC, 18~72VDC, 40~160VDC
• 4000VDC input/output isolation
• High efficiency up to 93%
• Cooling by free air convection
• -40~+70℃ wide operating range
• Built-in constant current limiting circuit
• Protections: Short circuit / Overload / Over voltage / Input reverse polarity
• LED power indicator
• Approval: CE
• Dimension (LxWxH) : RSD-30: 113×60×25mm/ RSD-60: 128×60×25mm
• 3 years warranty

RSD-30 Series RSD-60 Series

1~6W SIP Package DC-DC Converter

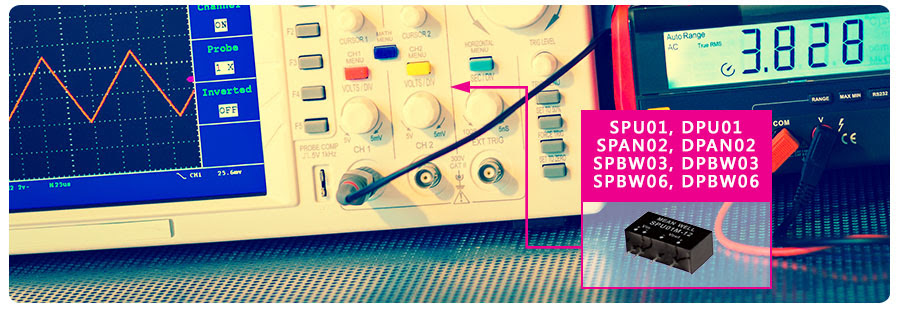

After the successful launch of DC-DC unregulated converter ~SPU02/03 series and regulated converter SPA02/SPB03/SPB05 series, MEAN WELL is pleased to introduce 8 new series at the same time~ unregulated 1W SPU01/DPU01 series and regulated 2W/3W/6W SPAN02/DPAN02/SPBW03/DPBW03/SPBW06/DPBW06 series, in order to fulfill the DC-DC SIP package converter product line. Along with these new series phased-in, MEAN WELL can offer a complete power solution for their DC-DC module product line under 10W!

These 8 series are designed to comply with the SIP (Single in Line) standard pin assignment in the market, no matter in mechanism design or in package. Besides feturing ultra-wide input range (the widest 4:1) and ultra-wide range of working temperature (-40~+90°C), they are all equipped with 1500VDC I/O isolation and enjoy three years warranty. Suitable applications include IoT , electronics, telecom, networking, industrial control, and various distributed power architecture…etc. For further details, please refer to the following selection table.

• Multiple Voltage Input Range  (±10% , 2:1 , 4:1)


• Single output/Dual output models


• Single in line (SIP) package


• 1500VDC I/O Isolation


• Working Temperature：-40~+90°C


• Comply with EMI without any additional components


• Protection：Short Circuit


• 3 years Warranty

SPU01 Series  DPU01 Series
SPAN02 Series  DPAN02 Series  SPBW03 Series  DPBW03 Series  SPBW06 Series  DPBW-06 Series

HLG-480H (-C) Series ~ 480W High Performance LED Driver with PFC

Introduction:

The HLG (C.V.+C.C. output) and HLG-C (C.C. output) family of MEAN WELL are the most outstanding models of high performance LED drivers in the lighting industry, and there have been complete series HLG-40H/ 60H(-C)/ 80H(-C)/ 100H(-C)/ 120H(-C)/ 150H/ 185H(-C)/ 240H(-C)/ 320H(-C)/600H introduced to the market. Since the demand for 480W applications continue growing, MEAN WELL is pleased to unveil the new 480W~ HLG-480H and HLG-480H-C series in order to meet the needs for large-scale LED lighting systems.

The HLG-480H and HLG-480H-C series follow the high performance and high reliability design of HLG and HLG-C families. Their highest working efficiency are up to 95% and provide 7 years warranty. The whole series provide various models equipped with different dimming functions, like adjustable Io value, 3 in 1 dimming function, and smart timer dimming function. (please refer to the table) that they are very suitable to be applied to the LED street lighting, LED fishing lamp, LED harbor lighting, LED greenhouse lighting, LED high bay lighting, and so on.

Feature:

90~305VAC full range input

HLG-480H：C.V. + C.C.；HLG-480H-C：C.C. output mode

Built-in active PFC function

High efficiency up to 95%

Working temperature: -40~+90℃ (case temperature)

IP67/65 rated

Fanless design

Protections: Short circuit / Over current (HLG-480H only) / Over voltage / Over temperature

Comply with harmonic current limit per EN61000-3-2 Class C (≧50% load)

Approvals: UL/CUL/ENEC/CCC/CB/CE

Type “HL” for use in Class I, Division 2 hazardous (Classified) location luminaires

Metal case, dimension ( L x W x H ): 262 x 125 x 43.8 mm

7 years warranty

Application:

16W Constant Current LED Power Supply with PFC Function PLD-16 Series

Introduction:

After the launch of AC/DC LED power supply with constant current (C.C.) mode and PFC function ~ PLD-25 series (25W), MEAN WELL continuous to introduce PLD-16 series (16W) to fulfill the lower wattage demand of LED indoor/ decorative lighting market. Thanks to the simplified single stage PFC topology, the required high power factor (PF>0.9) can be achieved economically.

PLD-16 series can be used in 115VAC or 230VAC utility power regions, and also fulfills the usage of 277VAC main power system in North America. With constant current (C.C.) output, the efficiency of these new models are as high as 86% and hence can operate between -30 ~ +50℃ by only free air convection. All series are semi-potted for PCB protection (IP30 level) to provide the basic ability of anti-moisture, anti-dust as well as heat-conduction purpose. With double insolated two wires input design (Class II, no FG), these LED drivers are enclosed by plastic case with 94V-0 fire prevention level, which can protect the users against electric shock. In addition, these series comply with global certificates per UL8750, EN61347-2-13, and EN62384 and also meet with major lighting regulations such as CE and FCC, which are perfectly suitable for LED-based indoor lighting and decorative lighting applications.

Feature:

1. AC input range 90~135VAC or 180~295VAC

2. Built-in active PFC function

3. Constant current (C.C.) output: 350mA/700mA/1050mA/1400mA

4. High efficiency up to 86%

5. Cooling by free air convection

6. Plastic case with UL94V-0 fire prevention level/ IP30 design

7. Class II design, no FG

8. Protections: Short circuit / Over temperature

9. Approvals: UL8750, ENEC EN61347-2-13, EN62384, CE, FCC

10. Dimension (LxWxH): 84x 57x 29.5mm

11. 3 years warranty

120W/150W Economical Slim Din Rail Power Supply EDR-120/150 NDR-120 Series

Introduction:

MEAN WELL EDR-75 and NDR-75 series have been prevailing in the industrial control field since they were released to the market. In order to make the economical slim DIN rail power supply a complete product line, MEAN WELL unveils EDR-120 and NDR-120, with the 120W rated power, and EDR-150, with the power up to 156W. Adopting the same enclosure design with 40mm width, EDR-120, NDR-120 and EDR-150 are able to be installed on DIN rail TS-35/7.5 or TS-35/15. They are the ideal power supply models for the cabinets with a limited width.

These three series accepts the full range 90~264VAC input. On the output end, EDR-120 and NDR-120 offer three different DC voltage, 12V, 24V and 48V, whereas EDR-150 the single 24V.

These three series are designed without the built-in fan. Thanks to the efficiency up to 88.5%(EDR-120), 87%(EDR-150) and 89% (NDR-120), with the cooling by free air convection, they can operate under -20~+60℃ (EDR-120 and EDR-150) and -20~+70℃ (NDR-120), respectively. Other functions comprise short circuit protection, overload protection (constant current limiting output*), over voltage protection, over temperature protection, and front panel DC voltage adjustment. These three series are certified with UL/CUL/TUV/CB/CE safety regulations and observe EN61000-6-2, the heavy industry grade EMS (Electro Magnetic Susceptibility) standard. Regarding EMI (Electro Magnetic Interference), EN55022 Class A (EDR-120 and EDR-150) and Class B(NDR-120) are followed, respectively. Suitable applications include industrial control system, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus, and etc.

Feature:

1. 90~264VAC full range input

2. Installed on DIN rail TS-35/7.5 or TS-35/15

3. 40mm slim design, dimension(W x H x D):40 x 125.2 x 113.5mm

4. Protections: Short circuit / Overload (Constant current limiting mode*) / Over voltage / Over temperature

5. UL508 (industrial control equipment) compliance

6. Certificate: UL / CUL / TUV / CB / CE

500W Off-Grid True Sine Wave Solar Inverter ISI-501 Series

Introduction:

MEAN WELL introduced 500W DC/AC true sine wave inverter with MPPT (Maximum Power Point Tracking) solar charger~ ISI-501 series. This off-grid solar inverter can be constructed as an energy-saving power station by only adding external lead-acid batteries and solar panels. Through the built-in MPPT solar charger, “free energy” from the sun can be stored into the battery bank by solar panels and then transformed to AC output via its inverter stage, which can conserve the energy consumption. ISI-501 series can provide 500W rated power continuously (450W for 12VDC) for all kinds of electric devices. Peak load capability includes 110% rated power for 1 minute and high surge power up to 200% rated value for 30 utility cycles.

Digitally controlled by microprocessor and designed by high frequency topology, ISI-501 is light weight and possesses up to 88% of high efficiency. The output voltage and frequency can be flexibly adjusted through the front panel according to the demands. These power inverters are equipped with complete protections, include input reverse polarity, BAT low alarm, BAT low shutdown, BAT over voltage for the input side and protections of short circuit, inverter overload, over temperature for the output side. Other standard functions include remote ON/OFF control, LED indicator, BAT low relay contact signal…etc. The design of ISI-501 series comply with global certificates per CE and FCC, which are suitable for powering all kinds of lighting fixtures, household appliances, and portable equipments in the remote mountains, islands, desert areas, or caravans that the utility supply can’t be reached but the solar panels can be constructed.

Feature:

1. DC input voltage: 12VDC/24VDC/48VDC

2. AC output voltage: 100/110/115/120 VAC or 200/220/230/240 VAC

3. True sine wave output (THD<3%)

4. Built-in 500W MPPT solar charger

5. 98% high conversion efficiency for MPPT function (typical)

6. High surge power up to 1000W

7. 88% high efficiency for inverter

8. Output voltage and frequency adjustable

9. Built-in ON/OFF remote control

10. Built-in BAT low relay contact signal

11. LED indicator for operation and battery status

12. Built-in fan ON/OFF control function

13. Protections:

14. Input –BAT polarity, BAT low alarm, BAT low shutdown, BAT over voltage

15. Output – short circuit, overload, over-temperature

16. Approval: FCC/ CE

17. Dimension(LxWxH): 205mmx 158mmx 67mm

18. 3 years warranty

600W Enclosed Type Medical Power Supply MSP-600

Introduction:

After the launched products of MSP-100, MSP-200, MSP-300 and MSP-450 series, MEAN WELL further introduced the 600W AC/DC medical enclosed type power supply~MSP-600 series, in response to the high wattage requirement of reliable medical power supplies. MSP-600 series comply with international medical safety regulations (MOOP level) and feature with low leakage current (≦300μA at 264VAC), hence, they are good power solutions for non-patient contact medical applications. These units also possess no load power consumption <0.8W, 5 years warranty, and EMI Class B level compliance, therefore, they can be used in all kinds of “green mode” medical equipments or electric devices and fulfill the energy-saving requirements for end systems.

Featuring with 85~264VAC universal AC input, MSP-600 provides 3.3V~48V output voltage options and possesses up to 89% of high efficiency. It can be forced air cooling by built-in DC fan for full load operation at -40℃~+50℃ ambient temperature, and even up to +70℃ by suitable derating. Other standard functions include protections for short circuit, overload, over voltage, and over temperature, 300VAC input surge immunity for 5 seconds, remote ON/OFF control, remote sense, fan ON/OFF control, and DC OK signal output. In addition, to meet the requirement of higher wattage application, the models of MSP-600-24/36/48 equipped with parallel function and can be operated up to 4 units in parallel. MSP-600 series comply with global medical certificates per UL/ CUL/ CB/ CE that greatly ensure users’ safety. Suitable applications include medical equipments requiring low leakage current, chemical or biological detection equipments, analysis facilities, and any systems requiring low no load power consumption.

Feature:

1. Low leakage current <300μA @ 264VAC

2. No load power consumption < 0.8W

3. Universal AC input 85~264V

4. Built-in active PFC function, PF>0.94

5. Withstand 300VAC surge for 5 seconds

6. High efficiency up to 89%

7. Protection: Short circuit / Overload / Over voltage / Over temperature

8. Built-in constant current limiting circuit

9. Built-in remote sense function

10. DC OK signal

11. Long life DC fan with fan ON/OFF control function

12. Built-in remote ON/OFF control & 5V/0.3A standby output

13. Parallel function for MSP-600-24/36/48

14. Certificate: UL / CUL / CB / CE

15. Dimension(LxWxH): 218x 105x 63.5mm

16. 5 years warranty
